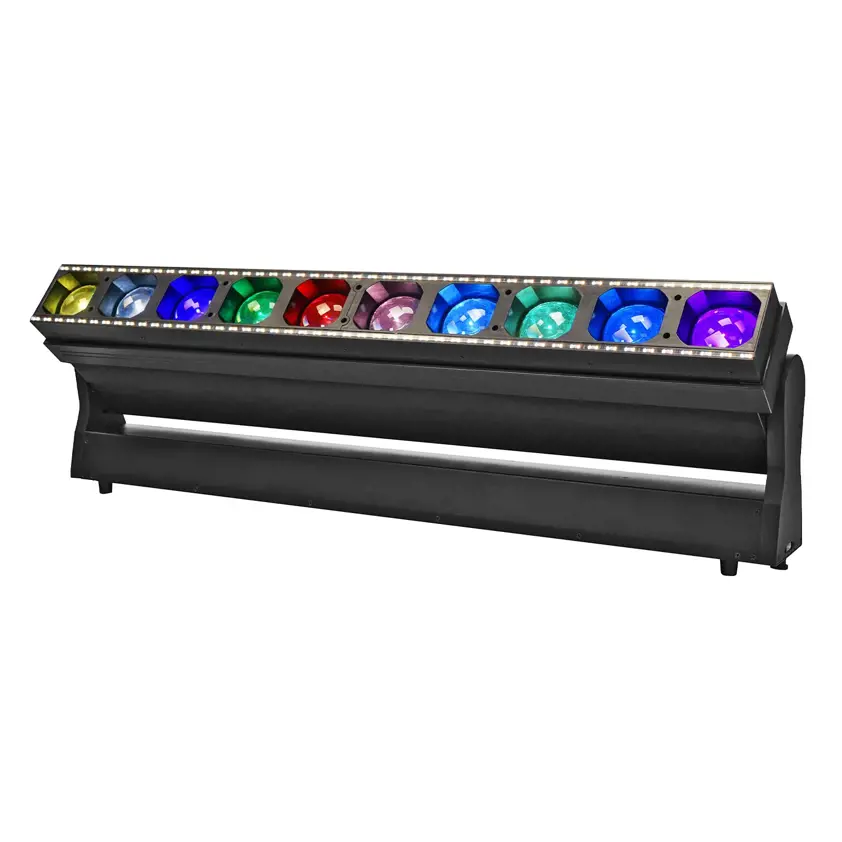

he Elumen8 Meteor 1060 Zoom is a high-output moving batten incorporating ten 60W RGBW LEDS with full pixel mapping capabilities along with 96 x 1W tri colour, 96 x 2W warm white and 96 x 2W cool white LEDs for added effects. High quality optics ensure a smooth, homogenized output across the batten through a broad pallet of pastel and saturated colours. Multiple operating modes create unique effects including beams, washes, and strobe. The fixture also offers pre-programmed macros and patterns and features a motorized zoom with a beam angle of 3° to 41°. There are two connection locations for the included omega clamps accept most hardware and a tool-less connection system allows units side-by-side connection. PowerTwist TR1, 5-Pin DMX and Ethernet inputs and outputs to allow for a problem-free, rental-ready connection.
- 2 year warranty
- 10 x 60W quad-colour LEDs (RGBW)
- 96 x 1W tri-colour SMD 5050 LEDs (RGB), 96 x 2W cool white SMD 5050 LEDs (CW) plus 96 x 2W warm white SMD 5050 LEDs (WW)
- Adjustable beam angle: 3°- 41°
- Lumens – Source: 25,450
- Lumens – Output: 23,500
- 3° - 109,375 Lux @ 2m (full on), 41° - 10,125 Lux @ 2m (full on)
- CRI: 78
- Refresh rate: 15 selectable presets between 900Hz-25kHz
- Motorised zoom
- Full pixel mapping capabilities
- Control protocols: DMX, Art-net and sACN
- DMX channels: 17/27/99/108 or 168 selectable
- Manual control mode
- Built-in colour macros and patterns
- Colour temperature presets
- Tilt auto correction
- 16-Bit tilt positioning
- Tilt: 200°
- 0 - 100% dimming
- 4 dimming curves: Linear, square law, inverse square law and S-curve
- Variable strobe
- Quick release omega clamps included
- RDM (Remote Device Management)
- 4 button menu with 1.8” TFT display
- Display battery backup for offline configuration
- PowerTwist TR1, 5-Pin XLR and Ethernet inputs/outputs
- Temperature controlled fans
